Building with Clojure and Vert.x

Does Vert.x make Node.js irrelevant?

Knowledge

is the difference between choice and choices.

Simple Example

(ns example.http.server
  (:require [vertx.http :as http]
            [vertx.http.route :as rm]))

(def routes
  (-> (rm/get "/currenttime"
              #(http/end
                 (http/server-response %)
                 (str
                   (System/currentTimeMillis))))

      (rm/all #".*"
              #(http/send-file
                 (http/server-response %)
                 "index.html"))))

(let [port (Integer. (or (System/getenv "PORT")
                         "3000"))]
  (-> (http/server)
      (http/on-request routes)
      (http/listen port))
  (println "Starting Http server on port "
           port))

var path = require('path'),
    express = require('express'),
    app = express(),
    port = process.env.PORT || 3000;

app.get('/currenttime', function (req, res) {
  res.send(Date.now()+'');
});

app.get('/*', function (req, res) {
  res.sendFile(path.join(__dirname,
                         'index.html'));
});

var server = app.listen(port, function () {
  console.log('Starting Http server on port %s',
              port);
});

Verticle

Verticle Event Loops

Scaling

$ vertx run server.clj -instances 4

Vert.x Command Line Tool

Running Verticles

$ vertx run server.clj
$ vertx run server.clj -instances 4 -conf config1.json
$ vertx run server.clj -cp bin:lib/old -cluster

Running Modules

$ vertx runzip module1.zip
$ vertx runmod com.example2~my-mod~0.1.0

Leiningen Integration

$ lein new vertx example2

$ lein vertx run
$ lein vertx buildmod

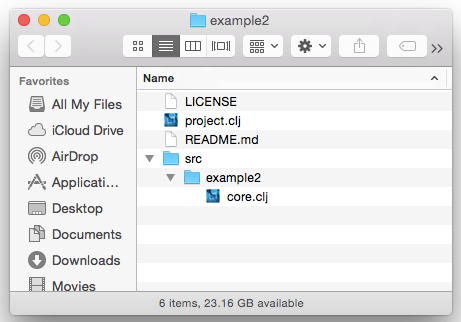

Lein-Vertx Example

project.clj

(defproject example2 "0.1.0-SNAPSHOT"
  :dependencies [[org.clojure/clojure "1.6.0"]
                 [clj-time "0.8.0"]]
  :plugins [[lein-vertx "0.3.1"]]
  :vertx {:main example2.core/init
          :author "FIXME: Your name"
          :keywords ["FIXME: keywords"]
          :developers ["FIXME: other developers"]})

Lein-Vertx Example

core.clj

(ns example2.core
  (:require [vertx.http :as http]
            [vertx.http.route :as rm]
            [clj-time.core :as t]
            [clj-time.coerce :as tc]))

(def routes
  (-> (rm/get "/currenttime"
              #(http/end (http/server-response %)
                         (-> (t/now) tc/to-long str)))
      (rm/all #".*"
              #(http/send-file (http/server-response %) "index.html"))))

(defn init
  []
  (let [port (Integer. (or (System/getenv "PORT") "3000"))]
    (-> (http/server)
        (http/on-request routes)
        (http/listen port))
    (println (str "Starting Http server on port " port))))

Lein-Vertx Example

In the Medium

Worker Verticles

Shared Maps and Sets

• Immutable
• Primatives
• Strings
• Buffers
• Custom Types with Interface

Limited to Single Instances

Event Bus

(vertx.eventbus/publish "namespaced.address1"
                        {:a 1 :b "A12345"})

(vertx.eventbus/send "namespaced.address1"
                     {:a 1 :b ""}
                     (fn [data] (println data)))

Event Bus

With Timeout

(vertx.eventbus/send "namespaced.address1"
                     1000
                     {:a 1 :b ""}
                     (fn [error data] (println "A")))

Request & Response

(vertx.eventbus/on-message "namespaced.address1"
    (fn [data]
        (vertx.eventbus/reply {:a ""}
          (fn [data]
              (vertx.eventbus/reply {:b true}))
                (fn [data]
                    (vertx.eventbus/reply {:b true}))))

Module Structure

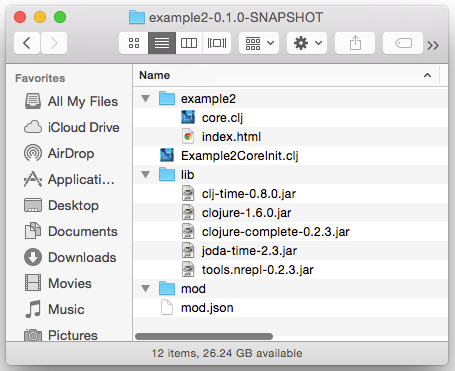

Folder Structure

Naming

com.insanitydesign~vertx-mod-cassandra-persistor~0.4.1

<dependency>
    <groupId>com.insanitydesign</groupId>
    <artifactId>vertx-mod-cassandra-persistor</artifactId>
    <version>0.4.1</version>
</dependency>

Module Structure

mod.json

{
  "licenses": ["Eclipse Public License"],
  "homepage": "http://example.com/FIXME",
  "description": "FIXME: write description",
  "developers": ["FIXME: other developers"],
  "author": "FIXME: Your name",
  "keywords": ["FIXME: keywords"],

  "main": "Example2CoreInit.clj"
}

Deployment

Without Platform

• Minimum JDK 7
• Fat Jar or Embedded Application

In the Large

Clustering

$ vertx run server.clj -cluster

• Requires ability to open ports
• Distributed Event Bus
• Does not bridge Shared maps and sets

Cluster management is handled by Hazelcast.

SockJS Bridge

Builtin Event Bus Bridging

Other Bridge Modules

• MQTT
• ZeroMQ
• clj-drone?

High Availability

Automatic Failover

$ vertx run server.clj -ha
$ vertx -ha

Groups

$ vertx run server.clj -ha -hagroup frontend

Quorums

$ vertx run server.clj -ha -quorum 2
$ vertx run server.clj -ha -quorum 2

Hazelcast 3.2.x

Cluster Detection

• Multicast (Default)
• AWS Group
• TCP/IP

Managed from a cluster.xml file, found on the classpath,
Vert.x install location, or Java system properties.

$ java -Dvertx.cluster.public.host=10.164.105.33 \
  -Dvertx.cluster.public.port=60558 ... \
  org.vertx.java.platform.impl.cli.Starter run server.clj \
  -cluster -cluster-port 9123 -cluster-host 127.10.192.129

Fat Jars

The Uberjars of Vert.x

$ vertx fatjar mymodule-1.0
$ java -jar mymodule-1.0-fat.jar
$ java -jar mymodule-1.0-fat.jar -cluster -conf myconf.json

Deployment Options

EC2, Digital Ocean, or other VMs

Heroku

$ heroku create --stack cedar \
  --buildpack https://github.com/Jared314/heroku-buildpack-vertx-jdk7.git

Docker

FROM dockerfile/java:oracle-java8
MAINTAINER Oliver Nautsch

RUN wget http://dl.bintray.com/vertx/downloads/vert.x-2.1.2.tar.gz && \
    tar zxf vert.x-2.1.2.tar.gz -C /usr/share && \
    rm vert.x-2.1.2.tar.gz && \
    ln -s /usr/share/vert.x-2.1.2/bin/vertx /usr/bin/vertx

CMD ["vertx"]

$ docker pull ollin/vertx

AWS Beanstalk

I have not tested Beanstalk, but I don't see why not.

Polyglot Language Support

• Java
• Groovy
• Scala
• Clojure
• Javascript (Rhino & Nashorn)

• CoffeeScript
• JRuby
• Jython
• PHP (Quercus)
• (Custom...)

Embedding the Event Bus

(ns eventbus1.core
  (:require [vertx.embed :as vertx]
            [vertx.eventbus :as eb])
  (:import [java.util.concurrent CountDownLatch]
           [org.vertx.java.core Handler])
  (:gen-class))

(defn -main [& args]
  (vertx/set-vertx! (apply vertx/vertx args))
  (let [latch (CountDownLatch. 1)]

    (eb/on-message "namespaced.address1" (fn [data] (eb/reply data)))

    (eb/on-message
      "namespaced.address2"
      (reify Handler
             (handle [_ msg]
               (let [m {:address (.address msg)
                        :body (.body msg)}]
                    (eb/publish "namespaced.address3" (:body m))))))

    (.await latch)))

Embedding the Platform

project.clj

(defproject embedded1 "0.1.0-SNAPSHOT"
  :description "FIXME: write description"
  :url "http://example.com/FIXME"
  :license {:name "Eclipse Public License"
            :url "http://www.eclipse.org/legal/epl-v10.html"}
  :dependencies [[org.clojure/clojure "1.6.0"]
                 ;; Required for Vertx Embedding
                 [io.vertx/vertx-core "2.1.2"]
                 [io.vertx/vertx-platform "2.1.2"]
                 [io.vertx/vertx-hazelcast "2.1.2"]
                 [io.vertx/clojure-api "1.0.4"]]

  :source-paths ["src/clj"]

  :main embedded1.core)

SockJS Event Bus Bridge

(ns event-server.core
  (:require [vertx.embed :as vertx]
            [vertx.http :as http]
            [vertx.http.sockjs :as sockjs])
  (:import [java.util.concurrent CountDownLatch])
  (:gen-class))

(defn req-handler [req]
  (condp = (.uri req)
    "/" nil
    "/favicon.ico" nil))

(defn -main [& args]
  (vertx/set-vertx! (apply vertx/vertx args))
  (let [latch (CountDownLatch. 1)
        server (-> (http/server)
                   (http/on-request req-handler))]

    (-> (sockjs/sockjs-server server)
        (sockjs/set-hooks
          :created (fn [sock] (println "handleSocketCreated") true)
          :closed (fn [sock] (println "handleSocketClosed"))
          :send (fn [sock msg address] (println "handleSend") true)
          :publish (fn [sock msg address] (println "handlePub") true)
          :pre-register (fn [sock address] (println "handlePreRegister") true)
          :post-register (fn [sock address] (println "handlePostRegister"))
          :unregister (fn [sock address] (println "handleUnregister") true))

        (sockjs/bridge {:prefix "/events"} [{}] [{}]))

    (http/listen server 3000)
    (.await latch)))

SockJS Event Bus Bridge

client.cljs

(ns cljsclient.core
  (:require [vertx.client.eventbus :as eb]))

  (let [eventbus (eb/eventbus "/events")]
    (eb/on-open eventbus (fn [bus]
                           (println "eventbus open")

                           (eb/on-message bus
                                          "namespaced.address3"
                                          (fn [data] (.log js/console data)
                                                     (eb/close bus)))

                           (eb/send bus "namespaced.address1" {:a 1 :b 2})))

    (eb/on-close eventbus (fn [] (println "eventbus closed"))))

Vert.x 3.0 (Soon™)

Changes

Does Vert.x make Node.js irrelevant?

Building with Clojure and Vert.x
